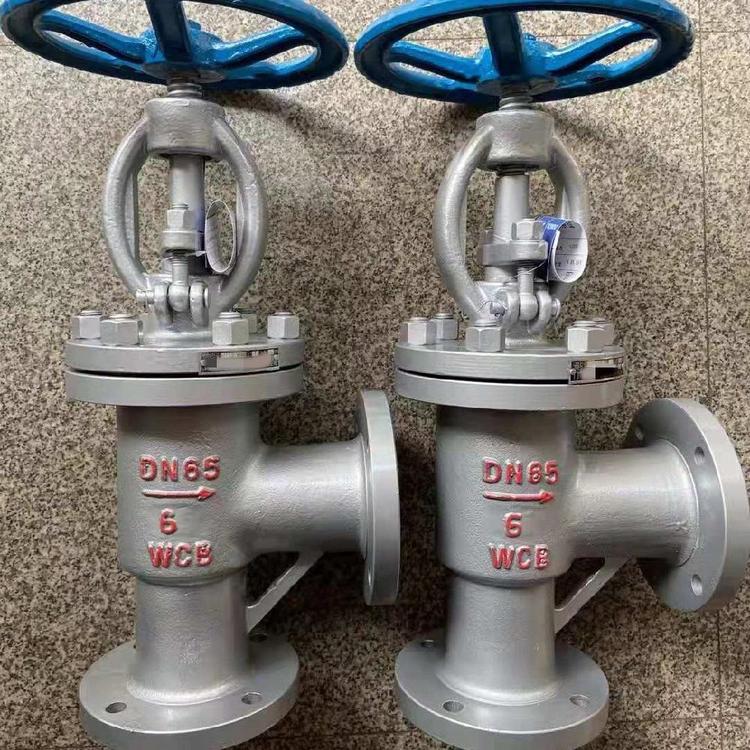

8″ angle type cast steel stainless steel WCB CF8 CF8M flanged globe valve

Usage: It is used for the pipes of water, oil, steam and corrosive liquids by functions of open and close.

Features:

1. Simple structure and good maintenance of globe valve products.

2. Sealing face is not easy to wear and abrasion.

3. Good sealing and long service life.

4. The disc travel is small when valve opening and closing, suitable for a medium to cut off or regulation and throttling use.

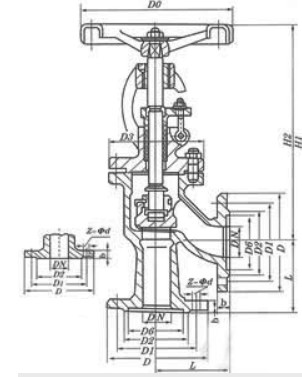

Outline and connecting measurement
DN	L	D	D1	D2	b-f	Z-ΦD	H	D0	WT (kg)
15	130	95	65	45	14-2	4-Φ14	195	120	3.77
20	150	105	75	55	14-2	4-Φ14	208	120	4.38
25	160	115	85	65	14-2	4-Φ14	218	150	5.34
32	180	135	100	78	16-2	4-Φ18	228	150	7.1
40	200	145	110	85	16-3	4-Φ18	253	200	10.1
50	230	160	125	100	16-3	4-Φ18	254	200	12.67
65	290	180	145	120	18-3	4-Φ18	310	240	18.27
80	310	195	160	135	20-3	8-Φ18	325	270	25.25
100	350	215	180	155	20-3	8-Φ18	411	270	30
125	400	245	210	185	22-3	8-Φ18	424	360	43.82
150	480	280	240	210	24-3	8-Φ23	466	400	70
200	600	335	295	265	26-3	12-Φ23	969	450	108
250	730	405	355	320	30-3	12-Φ25	969	450	159
